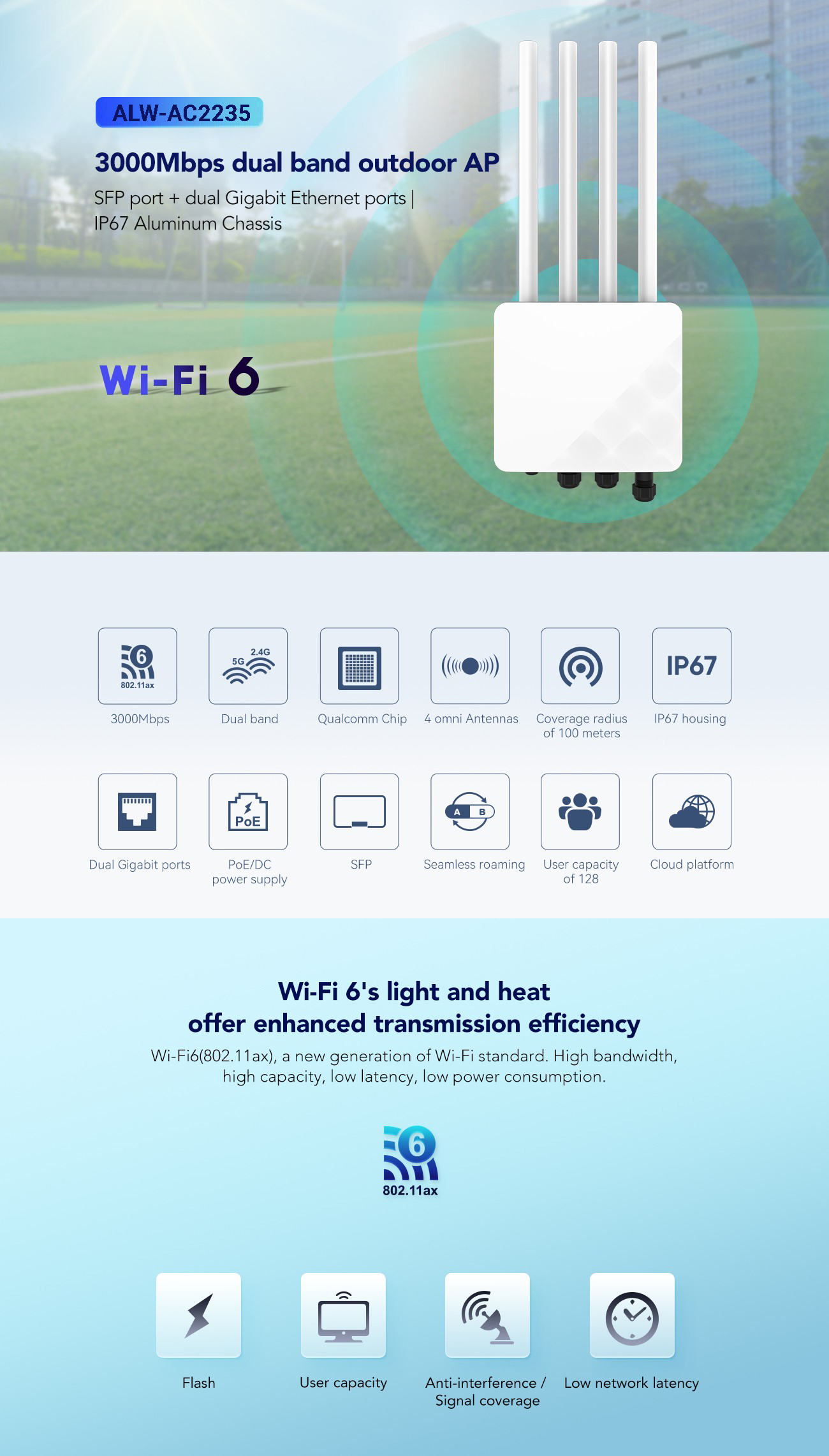

Outdoor AP ALW-AC2235
- It has better transmission quality, higher transmission rate, and the concurrent rate can reach up to 3000Mbps.
- The IPQ5018 chip is used to greatly expand the user capacity and support 128 users.
- The heat sink adopts a snap-on structure design and surface nano-coating treatment, which makes the heat dissipation effect more ideal.
- The radio frequency adopts high-power FEM, which has stable performance, wide wireless and longer transmission.
- The built-in lightning protection design greatly enhances the protection ability of the equipment.
- All-metal shell design, protection level IP67.
Hãy là người đầu tiên nhận xét “Outdoor AP ALW-AC2235”
Technical Parameter
|
Specification parameters |
|||||
|
Product model |
APH6-AX3000 |
||||
|
Flash |
SPI NOR 8MB，Nand 128MB |
||||
|
DDR3L |
512MB×1 |
||||
|
The 2.4GHz working frequency band |
2.4GHz～2.484GHz |
||||
|
2.4GHz WIFI transmission protocol |
802.11b / g / n / ax |
||||
|
The 5GHz working frequency band |
5.150GHz～5.850GHz |
||||
|
5GHz WIFI transmission protocol |
802.11a/ n / ac /ax |
||||
|
Antenna of 2.4GHz |
22.4GHz omni-directional antennas with each gain: 6 dBi |
||||
|
Antenna 5GHz |
25GHz antennas, with each gain: 6 dBi |
||||
|
top speed |
2.4G Hz provides a maximum access rate of 574Mbps, and 5G Hz provides up to 2402Mbps |
||||
|
Maximum wireless access support |
128 |
||||
|
And 2.4GHz wireless power |
802.11b |
11M |
25±2dBm |
1M |
25±2dBm |
|
802.11g |
54M |
23±2dBm |
6M |
25±2dBm |
|
|
802.11n HT20 |
MCS7 |
22±2dBm |
MCS0 |
24±2dBm |
|
|
802.11n HT40 |
MCS7 |
22±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE20 |
MCS11 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE40 |
MCS11 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
And 5GHz wireless power |
802.11a |
54M |
22±2dBm |
6M |
24±2dBm |
|
802.11n HT20 |
MCS7 |
21±2dBm |
MCS0 |
24±2dBm |
|
|
802.11n HT40 |
MCS7 |
21±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ac VHT20 |
MCS7 |
21±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ac VHT40 |
MCS7 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ac VHT80 |
MCS9 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE20 |
MCS11 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE40 |
MCS11 |
20±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE80 |
MCS11 |
19±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE160 |
MCS11 |
18±2dBm |
MCS0 |
23±2dBm |
|
|
A 2.4GHz reception sensitivity |
802.11b |
11M |
-87dBm |
1M |
-94dBm |
|
802.11g |
54M |
-75dBm |
6M |
-88dBm |
|
|
802.11n HT20 |
MCS7 |
-72dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-70dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE20 |
MCS11 |
-63dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE40 |
MCS11 |
-61dBm |
MCS0 |
-88dBm |
|
|
The 5GHz reception sensitivity |
802.11a |
54M |
-75dBm |
6M |
-92dBm |
|
802.11n HT20 |
MCS7 |
-73dBm |
MCS0 |
-92dBm |
|
|
802.11n HT40 |
MCS7 |
-70dBm |
MCS0 |
-90dBm |
|
|
802.11ac VHT20 |
MCS7 |
-67dBm |
MCS0 |
-88dBm |
|
|
802.11ac VHT40 |
MCS7 |
-64dBm |
MCS0 |
-88dBm |
|
|
802.11ac VHT80 |
MCS7 |
-60dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE20 |
MCS11 |
-62dBm |
MCS0 |
-90dBm |
|
|
802.11ax HE40 |
MCS11 |
-60dBm |
MCS0 |
-88dBm |
|
|
802.11ax HE80 |
MCS11 |
-58dBm |
MCS0 |
-86dBm |
|
|
802.11ax HE160 |
MCS11 |
-54dBm |
MCS0 |
-84dBm |
|
|
2.4GHz EVM |
802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB ; 802.11ax: ≤-35 dB |
||||
|
5GHz EVM |
802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB |
||||
|
frequency deviation (ppm) |
±20ppm |
||||
|
joggle (SFP) |
110 / 100 / 1000Mbps SFP port |
||||
|
joggle (WAN) |
110 / 100 / 1000Mbps adaptive WAN port with PoE 48V input |
||||
|
joggle (LAN) |
110 / 100 / 1000Mbps adaptive LAN port |
||||
|
External buttons |
Set key (press 6-10 seconds to restore factory default configuration) |
||||
|
Status indicator light |
PWR: power indicator (green, always on; not off) ETH 1: Gigabit light port indicator (green, no connection off, connection always bright, data flashing) ETH 2: Gigabit WAN port indicator (green, no connection off, connection always bright, data flashing) ETH 3: Gigabit LAN port indicator (green, no connection off, connection always bright, data flashing) 2.4G:2.4GHz status (green, 2.4GHz WiFi on, always on, data receiving, flashing, WiFi off, off) 5G: 5GHz state (green, 5GHz WiFi on, on, data receiving, flashing, WiFi off, off) |
||||
|
Power Supply |
PoE802.3at，DC2.0 12V/2 A |
||||
|
maximum power dissipation |
<18W |
||||
|
product size |
243.2mm × 218.3mm × 68.3 mm |
||||
|
weight |
TBD |
||||
|
work environment |
Normal operating temperature: -40°C to 70°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation) |
||||
|
levels of protection |
IP67 |
||||
|
ESD |
Air discharge + / -15K, contact discharge + / -8 K |
||||
|
surge |
Co-mode 4K and difference mode 2K |
||||
