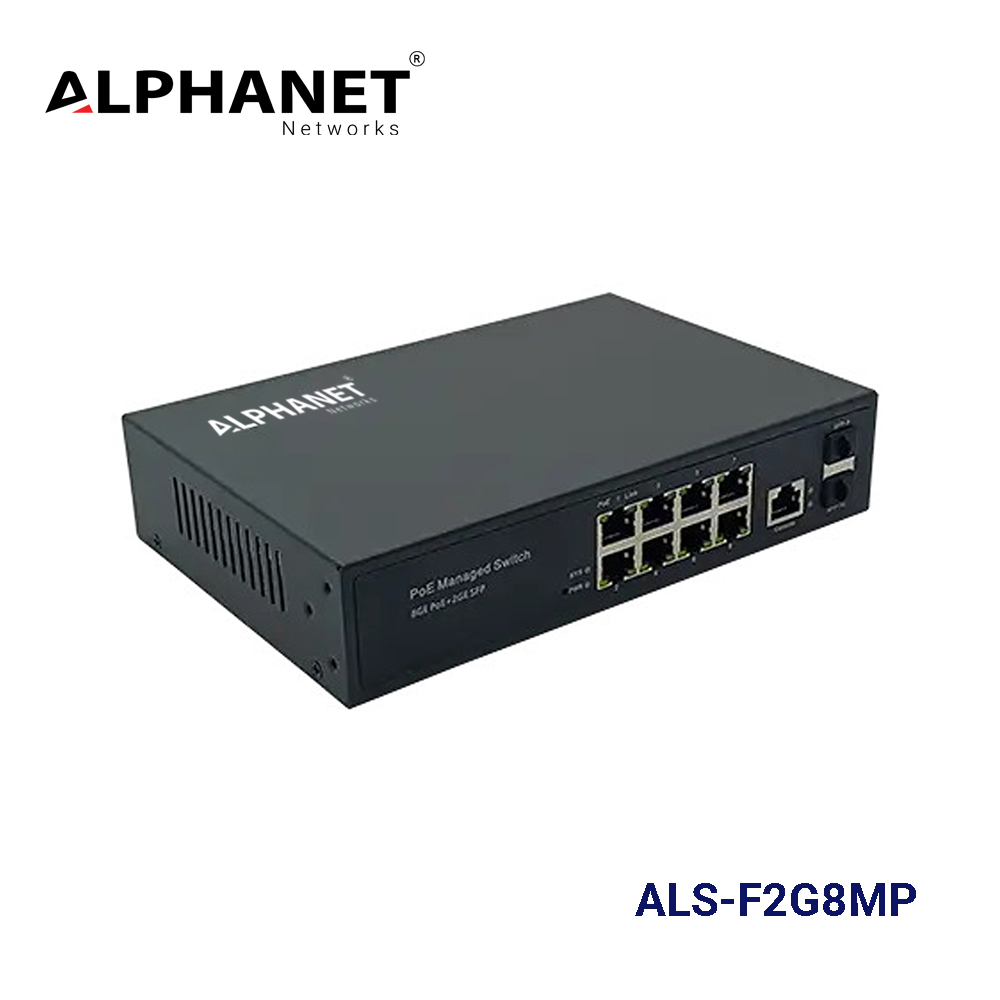

L2 switch PoE manged, 8*10/100/1000Base-TX PoE/PoE+ port and 2*1000M SFP,built-in power supply
| Fixed Port | 8*10/100/1000Base-TX PoE port （data/power）
2*1000M SFP |
| PoE Port | 1-8 port supports PoE |
| Console Port | 1*console port |
| POE Port | 1-8 |
| Reset | 1 |
| Network Protocol |
IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol |
| Port Specification | 10/100/1000BaseT（X）Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 56Gbps |
| Packet Forwarding | 14.44Mpps |
| MAC Address | 8K |
| Buffer | 4.1M |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| FLASH | 16M |
| RAM | 128M |
| Watt | ≤150W |
| LED Indicator | PWR:Power LED
SYS:(System LED) Port:(Orange=PoE LED+Green=Link LED) 9 10:(SFP LED) |
| Power | Built-in power AC 100~240V 50/60HZ |
| Operating Temperature/Humidity | -20～+55°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
| Product size/Packing size（L*W*H） | 210mm*140mm*45mm
270mm*220mm*70mm |
| N.W/G.W（kg） | 1.2kg/1.5kg |
| Installation | Desktop(optional wall+machine hanger parts) |
| Lightning protection level | 3KV 8/20us；
IP30 |
| Management switch WEB software function | |
|
Protocol Standard |
IEEE 802.3x
IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z IEEE 802.3ad IEEE 802.3q、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X |
|
MAC Address |
Support 16K MAC addresses;MAC address learning and aging |
|
VLAN |
Port-based VLANs
Up to 4096 VLAN support Voice VLAN,can configure QoS for voice data 802.1Q VLAN |
|
Spanning Tree |
STP(Spanning tree protocol)
RSTP(Rapid spanning tree protocol) MSTP(Rapid spanning tree protocol) EPPS(Ring network protocol) EAPS(Ring network protocol) 802.1x argumentation agreement |
|
Link Aggregation |
Max 8 aggregation groups TRUNK,each supports 8 ports |
|
Port Mirror |
Many-to-one port mirroring |
|
Loop Guard |
Loop protection function, real-time detection, rapid alarm, accurate positioning,intelligent blocking,automatic recovery |
|
Port Isolation |
Support downlink ports isolated from each other and communicate with uplink port |
|
Port Flow Control |
Half duplex based back pressure control
Full duplex based on PAUSE frame |
|
Line Rate |
Support downlink ports isolated from each other and communicate with upstream port |
|
IGMP Snooping |
IGMPv1/2/3 and MLDv1/2
GMRP Protocol Registration Multicast address management, multicast VLAN,multicast routing ports,static multicast addresses |
|
DHCP |
DHCP Snooping |
|
Storm Suppression |
Unknown unicast, multicast,unknown multicast,storm suppression of broadcast type
Storm suppression based on bandwidth tuning and storm filtering |
|
Security |
User port+ IP Address+ MAC Address
ACL based on IP and MAC Security properties of port based MAC address quantities |
|
QOS |
802.1p port queue priority algorithm
Cos/Tos，QOS sign WRR (Weighted Round Robin)，Weighted priority rotation algorithm WRR、SP、WFQ，3 priority scheduling models |
|
Cable Sequence |
Auto-MDIX; auto identification of straight-through cables and crossover cables |
|
Negotiation Mode |
Port supports automatic negotiation ( self-negotiation transmission rate and duplex mode) |
|
System Maintenance |
Upgrade package upload
System log view WEB restore factory configuration |
|
Network Management |
WEB NMS
CLI management based on Telnet, TFTIP, Console SNMP V1/V2/V3; RMON V1/V2 RMON Management |
