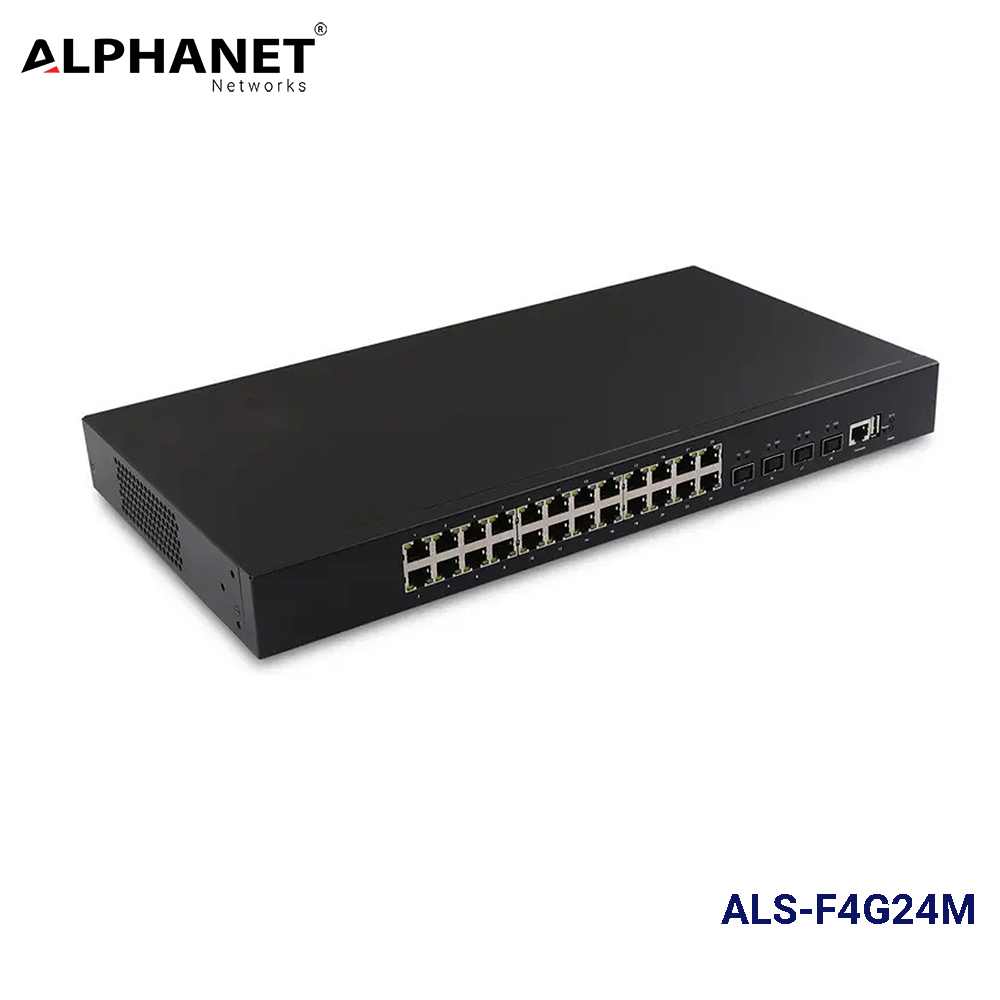

Switch ALS-F4G24M
* 24 10/100/1000M RJ45 Port + 4 1G/10G SFP+ Slot Managed Ethernet Fiber Core Switch
* Comply with IEEE 802.3, IEEE 802.3u, IEE802.3ab,IEE802.3z standards;
* Support QOS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN, ERPS etc.;
* Support connection with IP Cameras and wireless AP;
* Low power consumption design.Energy-saving and green;
* L2/L3 Optional, Non PoE/PoE Optional;
ALS-F4G24M series switches support Layer 3 routing protocols that include Static Routing, RIP, OSPF and VRRP, helping to build scalable, reliable networks. Multicast routing protocols such as PIM-SM and PIM-DM guarantee efficient routing for multicast groups.
The switches are equipped with 4 10G SFP+ ports which can be used for stack- ing.JHA-SW4024MGH Series switches support up to 8 switches for network simplification. With different port forms including Gigabit Ethernet, SFP Slots, 10G SFP+ Slots,JHA-S2404MG Series switches are capable of high switching capacity for the network. With all units identified by a simple IP address, the stack can be easily configured and monitored.
ALS-F4G24M series switches provide 3 kinds of out-of-band management ports: RJ45 console ports, Micro-USB console ports and RJ45 out-of-band management ports. Micro-USB console ports are designed for those laptop computers which do not support the RS232 (DB9) interface. Customers can use a USB cable to manage switches through the CLI (command-line interface). The RJ45 out-of-band management port is used solely for web management, leaving the RJ45 ports free for data transmission.
Features & euismod odio
| Model | ||
| General | IEEE 802.3i 10BASE-T Ethernet | |
| IEEE 802.3u 100BASE-TX/FX | ||
| IEEE 802.3ab 1000BASE-T | ||
| IEEE 802.3z 1000BASE-X | ||
| Standard and Protocols | IEEE 802.3ae 10GBASE-SR/LR | |
| IEEE 802.3av GVRP | ||
| IEEE 802.3x Flow control | ||
| IEEE 802.3ad Link Aggregation | ||
| IEEE 802.1v Protocol VLAN | ||
| IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLANs / VLAN tagging | ||
| IEEE 802.1x Network Login Security | ||
| IEEE 802.1p QoS | ||
| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) | ||
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF | ||
| Network Media | 10GBASE-LR | |
| 10GBASE-SR | ||
| Interfaces | 24 10/100/1000Mbps RJ45 ports 4 10G SFP+Slots | |
| 1 RJ45 Console Port | ||
| 1 Micro-USB Console Port | ||
| 1 RJ45 out-of-band Management Port | ||
| 1 USB 2.0 Storage Port | ||
| Performance | Switching Capacity | 128Gbps |
| Packet Forwarding Rate | 95.3Mpps | |
| MAC Address Table | 32K | |
| Flash memory capacity | 256MB | |
| The memory capacity | 2G | |
| Jumbo Frame | 12KB | |
| Physical& Environment | Certification | CE, FCC |
| Power Supply | 100-240V AC, 50/60Hz | |
| Max Power Consumption | 27W (220V/50Hz) | |
| Max Heat Dissipation | 220.69 BTU/h | |
| Dimensions (W × D × H) | 17.3 × 16.5 × 1.7 in. (440 × 250 × 44 mm) | |
| Fan Quantity | 2 removable fan module | |
| Operating Temperature | 0°C~50°C (32°F~104°F) | |
| Storage Temperature | -40°C~70°C (-40°F~158°F) | |
| Operating Humidity | 10% ~ 90%RH, non-condensing | |
| Storage Humidity | 5%~90%RH, non-condensing | |
| Physical Stacking | ||
| Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables | ||
| Software Features | ||
| L3 Features | -L3 Routing | -Multicast Routing |
| *128 IPv4 Interface entries | *Static Multicast Route | |
| *256 IPv4 Static Routing entries | *PIM-DM/SM | |
| *8K IPv4 Dynamic Routing entries | -ARP Proxy | |
| -RIP v1, v2 | -DHCP Server/Relay | |
| -OSPF v1, v2，V3 | -VRRP | |
| -IGMP v1, v2, v3 | -BFD | |
| L2 Features | -Link Aggregation | -Loopback Detection |
| *static link aggregation | -Flow Control | |
| *802.3ad LACP | *802.3x Flow Control | |
| *Up to 64 aggregation groups, containing 8 ports per group | -Port Mirroring | |
| -Spanning Tree Protocol | *One-to-One | |
| *802.1D STP | *Many-to-One | |
| *802.1w RSTP | *Flow-Based | |
| *802.1s MSTP | *Tx/Rx/Both | |
| *32 MSTP Instance | -LLDP, LLDP-MED | |
| *STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect | ||
| L2 Multicast | -1024 IGMP groups | -MLD Snooping |
| -IGMP Snooping | *MLD v1/v2 Snooping | |
| *IGMP v1/v2/v3 Snooping | *MLD Snooping Querier | |
| *IGMP Fast Leave | *Fast Leave | |
| *MVR | *Limited IP Multicast | |
| *IGMP Snooping Querier | *Static Multicast Forwarding | |
| *Limited IP Multicast | ||
| *Static Multicast Forwarding | ||
| VLAN | -VLAN Group | -VLAN VPN (QinQ) |
| *4K VLAN Groups | -GVRP | |
| -802.1Q tag VLAN | -Private VLAN | |
| -MAC VLAN | ||
| -Protocol VLAN | ||
| QoS | -Class of Service | -Diffserv |
| *Port Priority | *Diffserv Class | |
| *802.1p CoS/DSCP priority | *Diffserv Policy | |
| *8 Priority Queues | *Diffserv Service | |
| *Queue Schedule Mode | -Auto-VoIP | |
| -Bandwidth Control | -Voice VLAN | |
| *Port/Flow based Rating Limiting | ||
| *Storm Control | ||
| ACL | -Supports up to 3328 entries | -Extended IP ACL |
| -MAC ACL | *Source IP | |
| *Source MAC | *Destination IP | |
| *Destination MAC | *Fragment | |
| *VLAN ID | *IP Protocol | |
| *User Priority | *TCP Flag | |
| *EtherType | *TCP/UDP Port | |
| -Standard IP ACL | *DSCP/IP TOS | |
| *Source IP | ||
| *Destination IP | ||
| -Time based ACL | ||
| Security | -AAA | -802.1X |
| -DHCP Snooping | *Port based authentication | |
| -IP-MAC-Port Binding:Up to 32768 entries | *MAC(Host) based authentication | |
| -ARP Inspection:Up to 32768 entries | *Guest VLAN | |
| -IP Source Guard:Up to 1020 entries | *Support Radius authentication and accountability | |
| -Static/Dynamic Port Security | -Port Isolation | |
| -Up to 64 MAC addresses per port | -MAC Filtering | |
| -Broadcast/Multicast/Unicast Storm Control | -Secure web management through HTTPS with SSLv3/TLS1.0 | |
| *kbps/ratio/pps control mode | -Secure Command Line Interface(CLI) management with SSHv1/SSHv2 | |
| -IP/Port/MAC based access control | ||
| -DoS Defend | ||
| Management | -Web-based GUI | -CPU Monitoring |
| -Command Line Interface(CLI) through console port, telnet | -Cable Diagnostics | |
| -SNMPv1/v2c/v3 | -Access Control | |
| -SNMP Trap/Inform | -SNTP | |
| -RMON (1,2,3,9 groups) | -System Log | |
| -DHCP Option82 | -Dual Image | |
| -IPv6 Management | ||
| -PPPoE Circuit ID | ||
| -HTTP/TFTP File Transfer | ||
| MIBs | -MIB II (RFC1213) | -RMON2 MIB (RFC2021) |
| -Interface MIB (RFC2233) | -Radius Accounting Client MIB (RFC2620) | |
| -Ethernet Interface MIB (RFC1643) | -Radius Authentication Client MIB (RFC2618) | |
| -Bridge MIB (RFC1493) | -Remote Ping, Traceroute MIB (RFC2925) | |
| -P/Q-Bridge MIB (RFC2674) | -Support JHA private MIBs | |
| -RMON MIB (RFC2819) | ||
