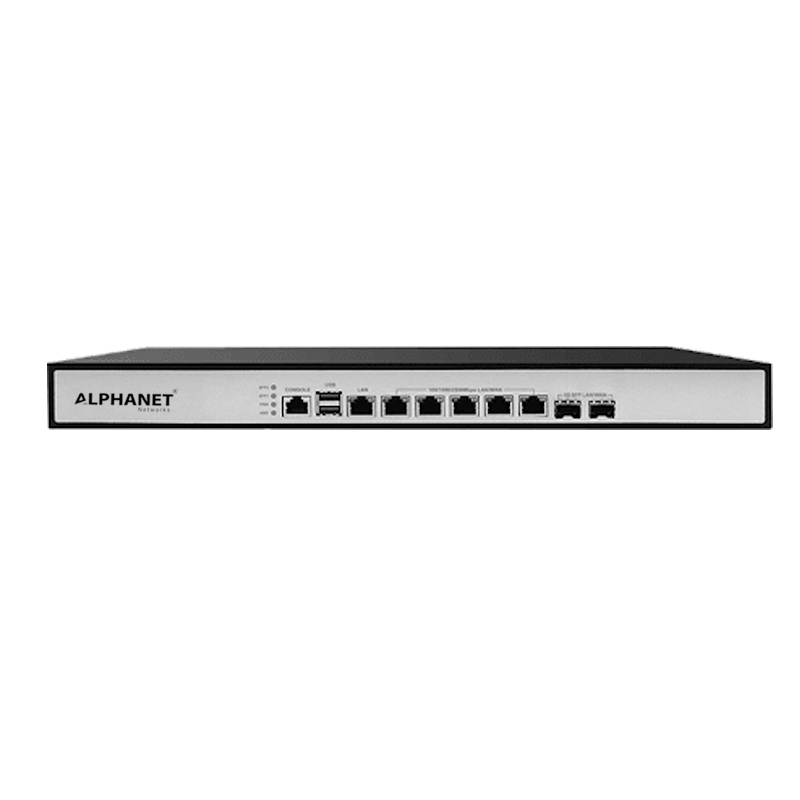

Enterprise Gateway – Controller ALW-CE500M

Chipset

SOC

BIOS

UEFI BIOS

System Memory

Type

3200MHz DDR4 SO-DIMM

Capacity

8GB

Storage

Interface

1*6Gb/s SATA

CF

1*CF TypeII slot, default 1G SLC CF card

HDD

Support 1*2.5″ Hard drive bracket with hard drive shockproof function

mSATA

1*mSATA SSD slot (or CF alternative)

Network

Interface

6*GbE RJ45

Ethernet chip

Intel 225V

LED

RJ-45 LED
Link/Act LED: Green light on when connecting, flashing green light during network communication
Speed LED: Orange light at 2.5G, green light at 1000M, and no light at 100M

SFP

2*1G SFP ports

SFP Chip

Marvell 88E1512

SFP LED

LED: Green light on when connecting, flashing green light during network communication

External interface

USB

2*USB3.0

Console

1*Console port, RJ45

Power switch

ATX switch

LED

Layer 1: Hard disk indicator light: Yellow light, flashing when data is read or written

Layer 2: Power indicator light: green, power on LED is on

Layer 3: green, SFP1 first optical port indicator light

Layer 4: green, SFP2 second optical port indicator light

Internal interface

Display

1*DB-15 VGA, support hot plug

USB

2*USB2.0 Pin interface

Console

1*RS-232 Pin, support LCM display module expansion

Watchdog

Supports 1-255 second programmable software watchdog and system reset

Digital input and output

8-way digital input/output (4-way input/4-way output)

Chassis

Color

Black, sanded baking paint

Front panel

Silver PVC, frosted

Dimensions (L*W*H)

294mm*430mm*44.5mm

Power Supply

Type

Built in open power supply

Power

65W

Power input

AC100V-264V

Net weight

5.5KG

Gross weight

6.5KG

Working Temperature

0℃~50℃

Storage Temperature

-40℃～70℃

Working humidity

5% ~ 85% RH Non condensing @ 40℃

Storage humidity

5～95% RH, Non condensing
